Key modules for Launch Monitor include:
1.KMG Portable Launch Monitor Key Module
2.KMR/KMR-A Key Module of Launch Monitor Cabinet
3.KMC Ceiling-Mounted Launch Monitor Key Module
1.KMG Portable Launch Monitor Key Module
KMG module is designed for the portable Launch Monitor. It is compact, stable, and reliable. It not only detects swing data but also putting data, offering powerful functionality. This module employs high-speed imaging technology, advanced image processing algorithms, and high-speed processing hardware to detect various motion data of the ball during launch by woods, irons, and putters, as well as the clubhead and clubface data at the moment of impact, in real time and with high accuracy.
For functionality, performance, external interfaces, and usage, please see iTrack.
Installation and structural dimension diagrams are also available.
KMG module Application Case:

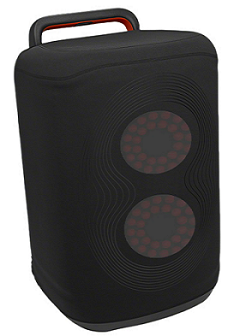

Portable Golf Launch Monitor Built-in KMG Module.
2. KMR/KMR-A Key Module of Launch Monitor Cabinet

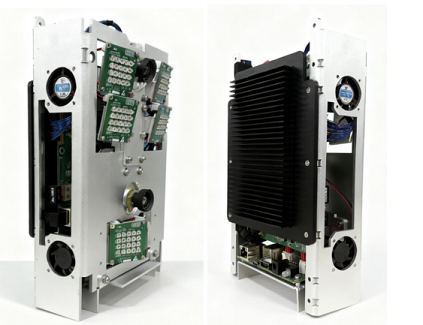

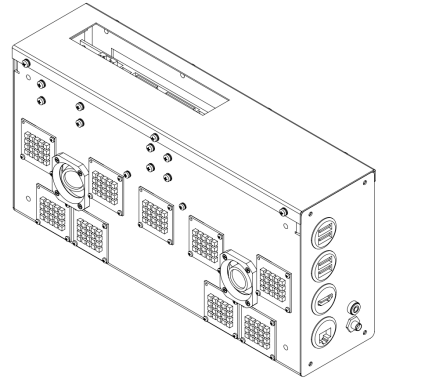

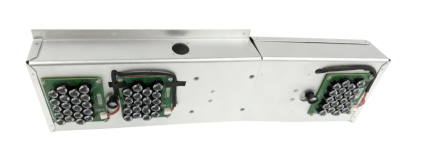

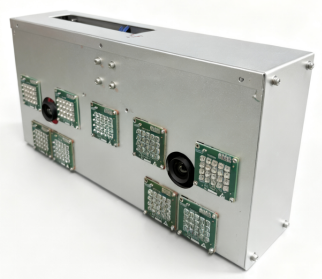

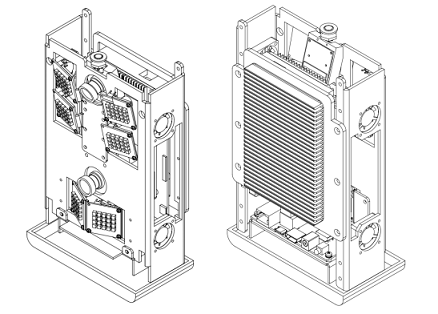

KMR module is suitable for installation in indoor golf simulator cabinet and outdoor driving range simulator cabinet. This module uses a high-speed binocular camera to detect ball data and club head and face data during golf takeoff. Located approximately 60cm above the ground, its compact structure makes it ideal for cabinet placement and application in outdoor golf driving ranges and indoor simulators.
The KMR-A adds two high-definition high-speed cameras (1080p@120fps) to capture swing images from two angles for AI analysis , see CaseVision Golf APP for details.
Module dimensions: 30.5cm × 15.3cm × 7.5cm。

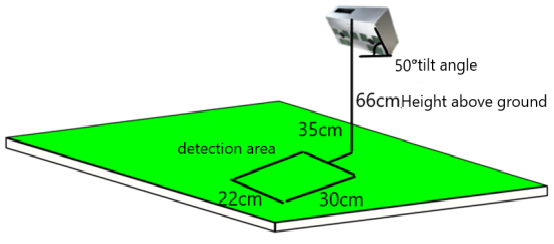

Installation and Detection Area:

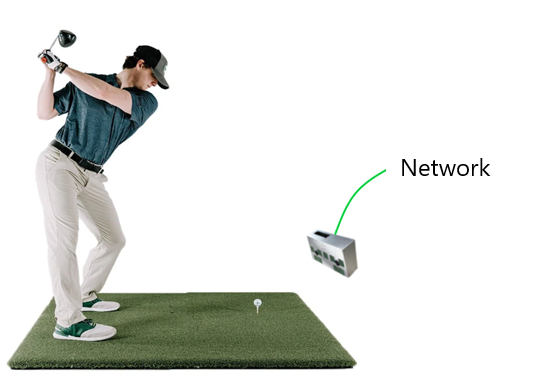

Application Method 1: Output data to computers or other devices via network.

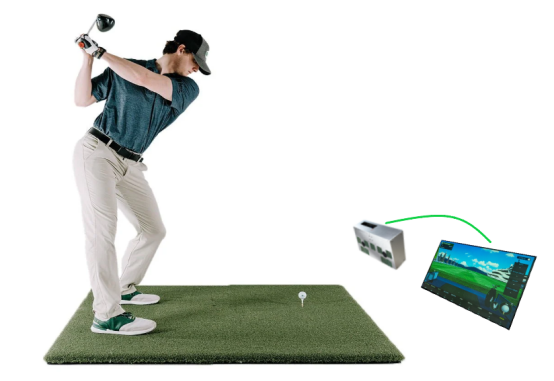

Application Method 2: Use an external monitor to display the data.

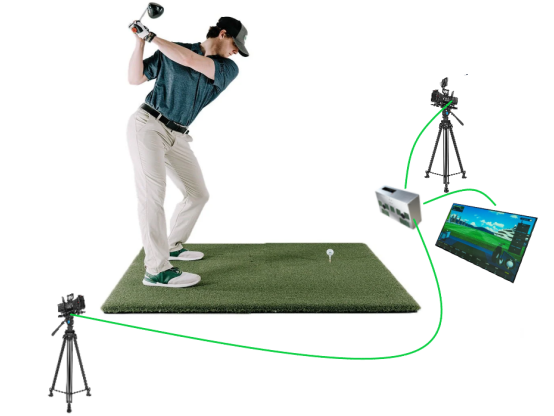

Application Method 3 (KMR-A): Connect two external cameras and one monitor to display shot data, swing video and AI analysis,. see CaseVision Golf APP for details.
Detection Data:
● Ball launch data: ball speed, launch angle, launch direction angle, spin (total spin/spin axis, or backspin/sidespin).）
● Ball flight trajectory: carry, roll distance, landing offset, flight height, landing angle, and flight time.
● Club head data: club head speed, attack angle, club head path, and smash factor.
● Club face data: face angle, dynamic loft, lie angle, closing speed, and impact point location.
Interfaces:
● Power：12V；
● External Interfaces: 2 USB high-speed camera ports, HDMI port, USB touchscreen port, Network (wireless/Bluetooth, wired network)
KMR/KMR-A module Application Cases:

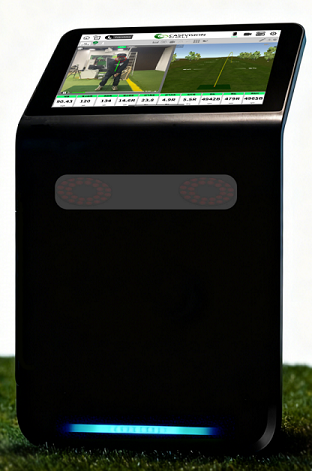

The all-in-one device built-in KMR-A module, mainly used in driving ranges.
3. KMC Key Module of Ceiling-Mounted Launch Monitor

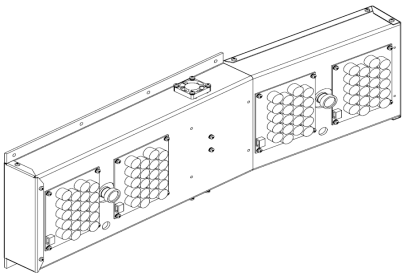

KMC module is designed for ceiling-mounted launch monitors. It uses a high-speed camera binocular principle to detect ball data and club head and face data when a golf ball is launched. The sensor is located at a height of 2.7m-3.0m above the ground. It has a compact structure, size only 56cm x 10cm x 20cm, and provides high detection accuracy and rich data.
Detection Data:
● Ball launch data: ball speed, launch angle, launch direction angle, spin (total spin/spin axis, or backspin/sidespin).）
● Ball flight trajectory: carry, roll distance, landing offset, flight height, landing angle, and flight time.
● Club head data: club head speed, attack angle, club head path, and smash factor.
KMC has an HDMI output, which can be connected to a projector to project onto the Golf hitting mat.
Install：

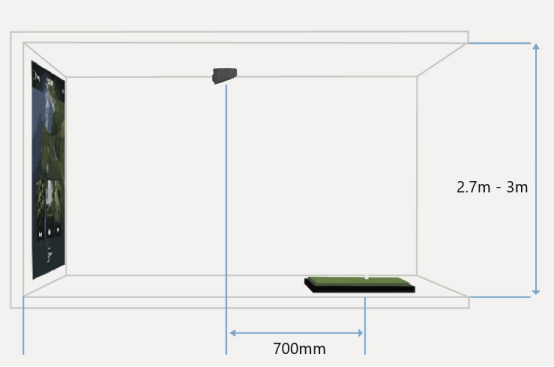

Detection Area：30cm×30cm。
KMC module Application Cases:

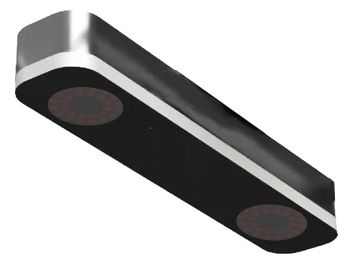

A ceiling Mounted sensor built-in KMC components, primarily used in indoor golf courses.
